PRODUCT DETAILS

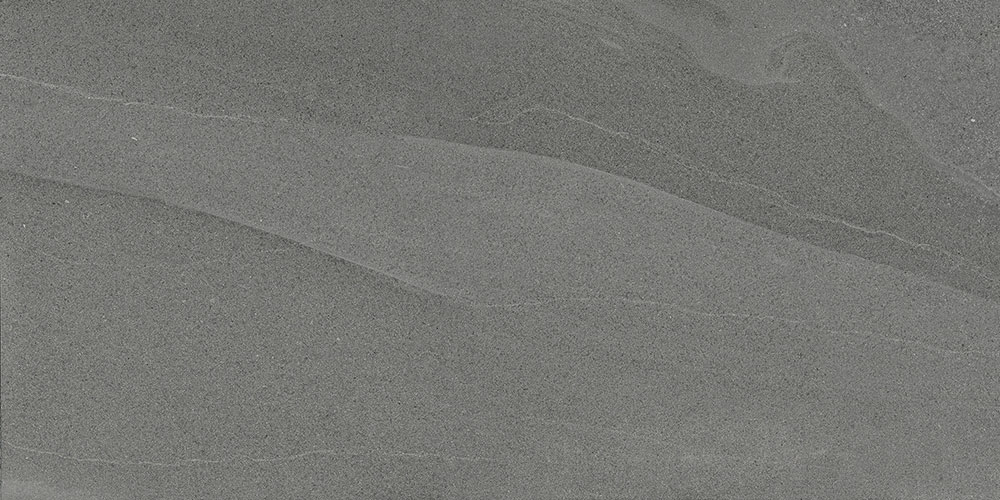

Series: New England
SKU: 70NEWANT1224
Size: 12" x 24"*
Thickness: 8.5 mm
Composition: Colored Body Porcelain Stoneware
Finish: Matte
Stocked: Domestic:
2 week ETA
?

Stock Status:

This product is stocked in the US, and will deliver in approximately 2 weeks.
Country: USA
Sizes listed are approximate. Actual sizes with acceptable variances may be listed in the brochure.

TRIM

  • 4" x 24" Matte Bullnose

TECHNICAL INFORMATION

Surface Rating: Not Rated
SLIP: DCOF ≥ .42 ?

HOW IS SLIP MEASURED?

Coefficient of friction (COF) is the measurement of a tile's frictional resistance, closely related to traction and slipperiness. Both static and dynamic measurements can be taken. Static coefficient of friction (SCOF) is the frictional resistance one pushes against when starting in motion. Dynamic coefficient of friction (DCOF) is the frictional resistance one pushes against when already in motion. For SCOF and DCOF, a slip occurs when pushing off with more force than the surface can resist. That can happen when the angle of the force changes (e.g., pushing off harder while pressing down less) or when the floor surface becomes more slippery than anticipated.

While many tile products still show a "COF" value, many manufacturers have stopped reporting coefficient of friction per the ASTM C1028 method because the standard for tile floors has changed. There is now a >0.42 requirement, measured per the DCOF AcuTest℠, for level interior tiles that will be walked on when wet.

Slip Resistance may also be measured using a Pendulum Test.
Class 0: Dry indoor areas only.
Class 1: Dry indoor with slope less than 6 degrees.
Class 2: Wet indoor areas (e.g. bathrooms, kitchen, pool surrounds). Dry indoor areas with slopes or stair steps.
Class 3: Indoor areas where, as well as water, other lubricants are present that can reduce slip resistance (e.g. commercial kitchens, garages, industrial floors, etc.). External areas.
Shade Variation: MODERATE ?
shade variation rating chart

Shade Variation Rating: MODERATE

Clearly distinguishable texture and/or pattern within similar colors.
Eco-Certification Standard ?
The concept of sustainability and "green" building practices has caused significant changes within the commercial and residential construction industry over the past decade. Building green is more than just an environmental buzzword though. In the end, the consumer also benefits from sustainability through less frequent maintenance needs and greater energy efficiency, resulting in lower costs over the life of a building, as well as a healthier indoor environment. When it comes to energy efficiency, durability and other green qualities, ceramic tile is unrivaled as an environmentally-friendly flooring material.

The Advantages of Tile
  • Tile is not an original source of contaminants.
  • Tile does not compromise IAQ during initial installation.
  • Tile will not act as a "sink" to absorb VOCs or other chemicals from surrounding materials. After tile is installed, it forms a completely inert flooring system.
  • Tile will not support bacterial or fungal growth, nor will it absorb or release other contaminants.
  • Tile offers ease of maintenance with simple, water-based cleaning materials.
  • Tile does not require solvent-based cleaners or sealers. Simple, water-based products keep tile well maintained and also protects our environment. Thus, tile offers significant advantages for indoor air quality during installation and for the lifetime of the tile’s use in the building.
FAQs: Click here for Information about Tile

RELATED ITEMS

Items in GREEN are available via QuickSHIP

1 3/8" x 1 3/8"
(Matte)

2" x 4"
(Matte)

2" x 4"
(Matte)

4" x 12"
(Matte)

12" x 24"
(Grip)

12" x 24"
(Grip)

12" x 24"
(Matte)

16" x 32"
(Matte)

24" x 24"
(Matte)

24" x 24"
(Matte)

24" x 48"
(Matte)

24" x 48"
(Matte)
Items in GREEN are available via QuickSHIP

1 3/8" x 1 3/8"
(Matte)

2" x 4"
(Matte)

2" x 4"
(Matte)

4" x 12"
(Matte)

12" x 24"
(Grip)

12" x 24"
(Grip)

12" x 24"
(Matte)

16" x 32"
(Matte)

24" x 24"
(Matte)

24" x 24"
(Matte)

24" x 48"
(Matte)

24" x 48"
(Matte)

OTHER COLORS


70NEWANT24
(Matte)

70NEWCOL24
(Matte)

70NEWIVO24
(Matte)

70NEWWHI24
(Matte)

70NEWANT24
(Matte)

70NEWCOL24
(Matte)

70NEWIVO24
(Matte)

70NEWWHI24
(Matte)

CATALOGS


New England Brochure

Certifications

Warranty

Care + Maintenance
TRIM

  • 4" x 24" Matte Bullnose
TECHNICAL INFORMATION
Surface Rating: Not Rated
SLIP: DCOF ≥ .42 ?

HOW IS SLIP MEASURED?

Coefficient of friction (COF) is the measurement of a tile's frictional resistance, closely related to traction and slipperiness. Both static and dynamic measurements can be taken. Static coefficient of friction (SCOF) is the frictional resistance one pushes against when starting in motion. Dynamic coefficient of friction (DCOF) is the frictional resistance one pushes against when already in motion. For SCOF and DCOF, a slip occurs when pushing off with more force than the surface can resist. That can happen when the angle of the force changes (e.g., pushing off harder while pressing down less) or when the floor surface becomes more slippery than anticipated.

Slip Resistance may be measured using a Pendulum Test.
Class 0: Dry indoor areas only.
Class 1: Dry indoor with slope less than 6 degrees.
Class 2: Wet indoor areas (e.g. bathrooms, kitchen, pool surrounds). Dry indoor areas with slopes or stair steps.
Class 3: Indoor areas where, as well as water, other lubricants are present that can reduce slip resistance (e.g. commercial kitchens, garages, industrial floors, etc.). External areas.

Slip Resistance may also be measured using a Ramp Test.
Shod Ramp Test: R9 (minimal) to R13 (maximum)
Barefoot Ramp Test: A (minimal) to B (maximum)
Shade Variation: MODERATE ?
shade variation rating chart

Shade Variation Rating: MODERATE

Clearly distinguishable texture and/or pattern within similar colors.
Eco-Certification Standard ?

Environmental Rating: Standard

The concept of sustainability and "green" building practices has caused significant changes within the commercial and residential construction industry over the past decade. Building green is more than just an environmental buzzword though. In the end, the consumer also benefits from sustainability through less frequent maintenance needs and greater energy efficiency, resulting in lower costs over the life of a building, as well as a healthier indoor environment. When it comes to energy efficiency, durability and other green qualities, ceramic tile is unrivaled as an environmentally-friendly flooring material.

The Advantages of Tile
  • Tile is not an original source of contaminants.
  • Tile does not compromise IAQ during initial installation.
  • Tile will not act as a "sink" to absorb VOCs or other chemicals from surrounding materials. After tile is installed, it forms a completely inert flooring system.
  • Tile will not support bacterial or fungal growth, nor will it absorb or release other contaminants.
  • Tile offers ease of maintenance with simple, water-based cleaning materials.
  • Tile does not require solvent-based cleaners or sealers. Simple, water-based products keep tile well maintained and also protects our environment. Thus, tile offers significant advantages for indoor air quality during installation and for the lifetime of the tile’s use in the building.
FAQs: Click here for Information about Tile
