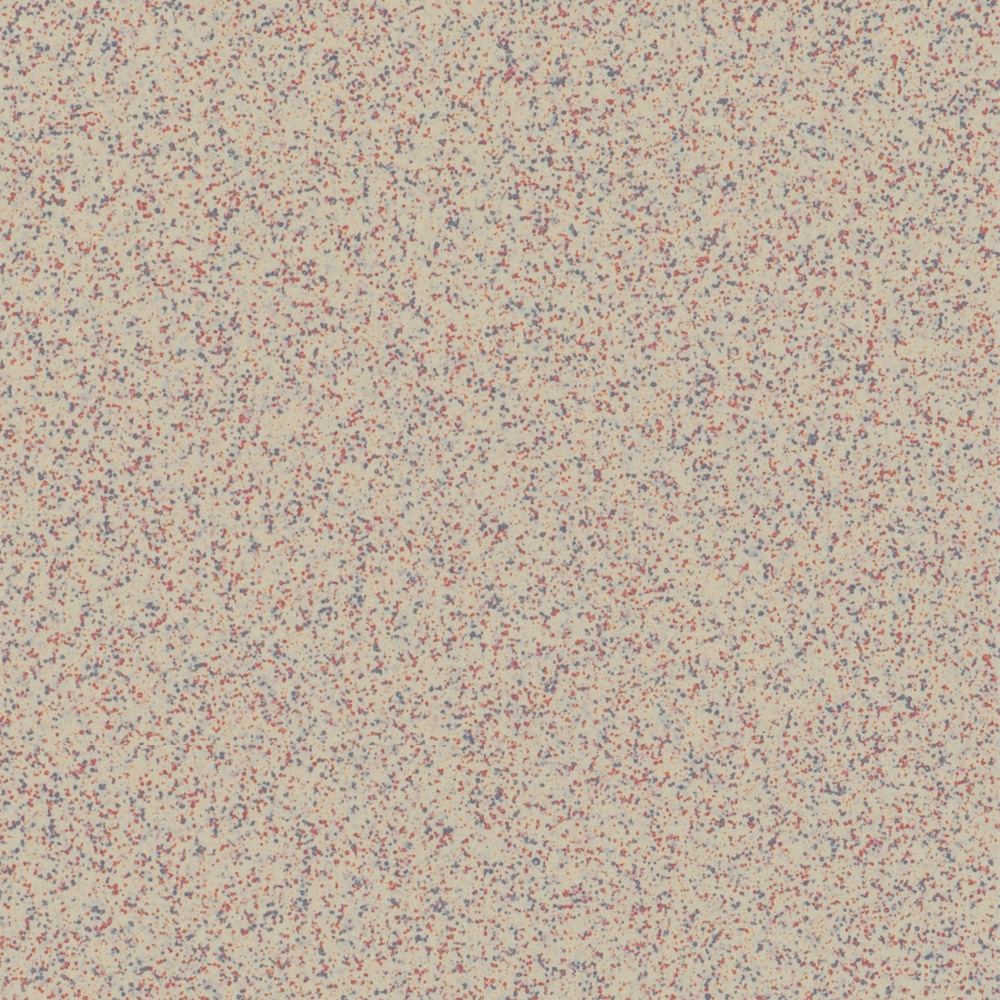

PRODUCT DETAILS

Series: Cross-Colors
SKU: 0323312CS
Size: 12" x 12"*
Thickness: 5/16 in.
Composition: Through Body Porcelain
Finish: Cross-Slate
Stocked: Domestic:
1 week ETA
?

Stock Status:

This product is stocked in the US, and will deliver in approximately 1 week.
Country: USA
Sizes listed are approximate. Actual sizes with acceptable variances may be listed in the brochure.

TRIM

  • 1" x 6" Unpolished Cove Base Inside Corner

  • 1" x 6" Unpolished Cove Base Outside Corner

  • 4" x 8" Unpolished Bullnose

  • 4" x 8" Unpolished Bullnose Corner Left

  • 4" x 8" Unpolished Bullnose Corner Right

  • 6" x 8" Unpolished Cove Base Corner Left

  • 6" x 8" Unpolished Cove Base Corner Right

TECHNICAL INFORMATION

Surface Rating: Mohs Scale: 6
SLIP: DCOF Wet .50-.60 ?

HOW IS SLIP MEASURED?

Coefficient of friction (COF) is the measurement of a tile's frictional resistance, closely related to traction and slipperiness. Both static and dynamic measurements can be taken. Static coefficient of friction (SCOF) is the frictional resistance one pushes against when starting in motion. Dynamic coefficient of friction (DCOF) is the frictional resistance one pushes against when already in motion. For SCOF and DCOF, a slip occurs when pushing off with more force than the surface can resist. That can happen when the angle of the force changes (e.g., pushing off harder while pressing down less) or when the floor surface becomes more slippery than anticipated.

While many tile products still show a "COF" value, many manufacturers have stopped reporting coefficient of friction per the ASTM C1028 method because the standard for tile floors has changed. There is now a >0.42 requirement, measured per the DCOF AcuTest℠, for level interior tiles that will be walked on when wet.

Slip Resistance may also be measured using a Pendulum Test.
Class 0: Dry indoor areas only.
Class 1: Dry indoor with slope less than 6 degrees.
Class 2: Wet indoor areas (e.g. bathrooms, kitchen, pool surrounds). Dry indoor areas with slopes or stair steps.
Class 3: Indoor areas where, as well as water, other lubricants are present that can reduce slip resistance (e.g. commercial kitchens, garages, industrial floors, etc.). External areas.
Shade Variation: LOW ?
shade variation rating chart

Shade Variation Rating: LOW

Differences among pieces from the same production run are minimal.”
Eco-Certification 4% Recycled + G² by SCS ?
This tile contains a minimum of 4 percent pre-consumer recycled content and is manufactured by Crossville® using processes that have been certified by Scientific Certification Systems. SCS has verified that through these recycling processes Crossville® recycles nearly 12 million pounds of previously discarded filtrate and fired tile waste. In addition to its own fired waste recycling, Crossville® also accepts and recycles reclaimed, previously installed tile through its tile “Take Back” program. For more information, visit CrossvilleInc.com/green.
FAQs: Click here for Information about Tile

RELATED ITEMS

Items in GREEN are available via QuickSHIP

4" x 8"
(Unpolished)

6" x 6"
(Cross-Slate)

6" x 6"
(Polished)

6" x 6"
(Unpolished)

8" x 8"
(Cross-Slate)

8" x 8"
(Cross-Tread)

8" x 8"
(Unpolished)

12" x 12"
(Cross-Slate)

12" x 12"
(Polished)

12" x 12"
(Unpolished)
Items in GREEN are available via QuickSHIP

4" x 8"
(Unpolished)

6" x 6"
(Cross-Slate)

6" x 6"
(Polished)

6" x 6"
(Unpolished)

8" x 8"
(Cross-Slate)

8" x 8"
(Cross-Tread)

8" x 8"
(Unpolished)

12" x 12"
(Cross-Slate)

12" x 12"
(Polished)

12" x 12"
(Unpolished)

OTHER COLORS


0323312UPS
(Unpolished)

0367512UPS
(Unpolished)

0375012UPS
(Unpolished)

0379012UPS
(Unpolished)

0382512UPS
(Unpolished)

0385012UPS
(Unpolished)

0388012UPS
(Unpolished)

0390012UPS
(Unpolished)

03R00112UPS
(Unpolished)

0323312UPS
(Unpolished)

0367512UPS
(Unpolished)

0375012UPS
(Unpolished)

0379012UPS
(Unpolished)

0382512UPS
(Unpolished)

0385012UPS
(Unpolished)

0388012UPS
(Unpolished)

0390012UPS
(Unpolished)

03R00112UPS
(Unpolished)

CATALOGS


Cross Colors Brochure

Technical Specs

Certifications

SDS

Warranty

Care + Maintenance
TRIM

  • 1" x 6" Unpolished Cove Base Inside Corner

  • 1" x 6" Unpolished Cove Base Outside Corner

  • 4" x 8" Unpolished Bullnose

  • 4" x 8" Unpolished Bullnose Corner Left

  • 4" x 8" Unpolished Bullnose Corner Right

  • 6" x 8" Unpolished Cove Base Corner Left

  • 6" x 8" Unpolished Cove Base Corner Right
TECHNICAL INFORMATION
Surface Rating: Mohs Scale: 6
SLIP: DCOF Wet .50-.60 ?

HOW IS SLIP MEASURED?

Coefficient of friction (COF) is the measurement of a tile's frictional resistance, closely related to traction and slipperiness. Both static and dynamic measurements can be taken. Static coefficient of friction (SCOF) is the frictional resistance one pushes against when starting in motion. Dynamic coefficient of friction (DCOF) is the frictional resistance one pushes against when already in motion. For SCOF and DCOF, a slip occurs when pushing off with more force than the surface can resist. That can happen when the angle of the force changes (e.g., pushing off harder while pressing down less) or when the floor surface becomes more slippery than anticipated.

Slip Resistance may be measured using a Pendulum Test.
Class 0: Dry indoor areas only.
Class 1: Dry indoor with slope less than 6 degrees.
Class 2: Wet indoor areas (e.g. bathrooms, kitchen, pool surrounds). Dry indoor areas with slopes or stair steps.
Class 3: Indoor areas where, as well as water, other lubricants are present that can reduce slip resistance (e.g. commercial kitchens, garages, industrial floors, etc.). External areas.

Slip Resistance may also be measured using a Ramp Test.
Shod Ramp Test: R9 (minimal) to R13 (maximum)
Barefoot Ramp Test: A (minimal) to B (maximum)
Shade Variation: LOW ?
shade variation rating chart

Shade Variation Rating: LOW

Differences among pieces from the same production run are minimal.”
Eco-Certification 4% Recycled + G² by SCS ?

Environmental Rating: 4% Recycled + G² by SCS

This tile contains a minimum of 4 percent pre-consumer recycled content and is manufactured by Crossville® using processes that have been certified by Scientific Certification Systems. SCS has verified that through these recycling processes Crossville® recycles nearly 12 million pounds of previously discarded filtrate and fired tile waste. In addition to its own fired waste recycling, Crossville® also accepts and recycles reclaimed, previously installed tile through its tile “Take Back” program. For more information, visit CrossvilleInc.com/green.
FAQs: Click here for Information about Tile
